JonDent's NLC index

Jono has put together quite a few pages exploring NLC 4U panels and build diaries of Eurorack modules.  Well worth a few hours, his vids tend to be nicer than mine too.
JonDent NLC index

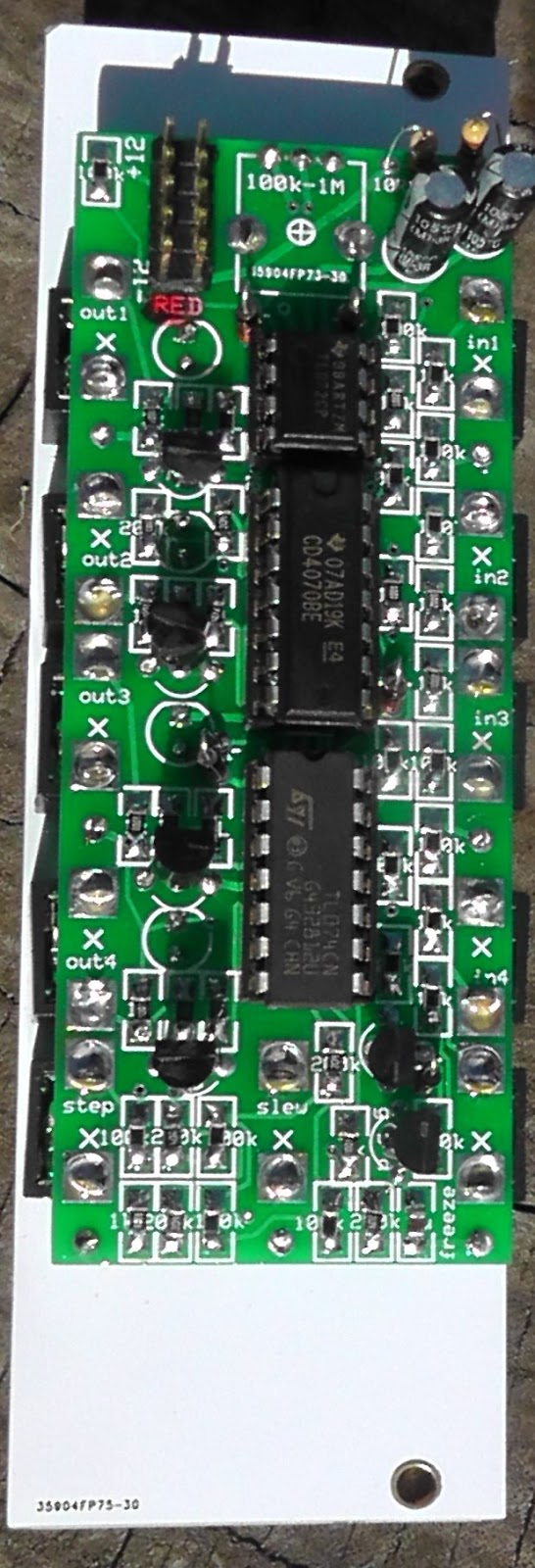

BOOLs panels & PCBs

These are nice. The inputs can be any signal crossing 1V. The logic outputs give 5V gates that are all related to each other as made up of different input combinations. The S&H input can be a trigger, gate or CV. The stepped and slewed outputs an be very similar to what comes out of the Sauce of Unce or Buchla 265 SOU. The ICs are all thru-hole, resistors can be 1206 or 0805 smd. Pretty easy build, has 4 LEDs for blinkenlights.
Using different logic chips gives you some pretty different behaviour so it is worth having more than one of these. The XOR/XNOR chips cn be used as crude ring modulators at audio frequencies.

This is a great module for just patching in any spare outputs from LFOs, sequencers, ADSRs, etc and generating a whole bunch of gates and CVs that are sync'd with everything else going on in your patch.

PCBs - US$18
panels - US$20
airmail - US$5 per order

BOOLs & Segue panels

I DREAM OF WIRES screening in Berlin 28/7/15

Anyone wanna fly me over? ......I prefer business class



On Tuesday July 28, I DREAM OF WIRES will celebrate it’s release premiere in Berlin, followed by a live performance by the legendary Morton Subotnick. Taking place at Babylon Kino Berlin, Morton Subotnick, accompanied by his frequent collaborator, video artist Lillevan, presents FROM SILVER APPLES OF THE MOON TO A SKY OF CLOUDLESS SULFUR REVISITED: VI, marking Subotnick’s first live appearance in Germany since 2011.

Event Details

Babylon Kino

Rosa-Luxemburg-Strasse 30,

10178 Berlin

28.07.2015 | 8PM

20€ Presales

25€ At the Door

+10€ w/DVD

Tickets Available:

 Yapsody: https://wires.yapsody.com

Babylon Kino: http://www.babylonberlin.de

www.idreamofwires.org
