fk1t VCF

1st play with the prototype.......which worked beautifully!
This has a core based on the Korg FK-1 pedal, which is a similar VCF to the ones found in the 800dv, 770 and 700 synthesizers. These VCFs have low pass and high pass stages in series. The main difference is this version uses vactrols as the variable resistors.
panel = USD20
assembled = USD160

Wednesday, 23 December 2015

Monday, 21 December 2015

the giant B0N0

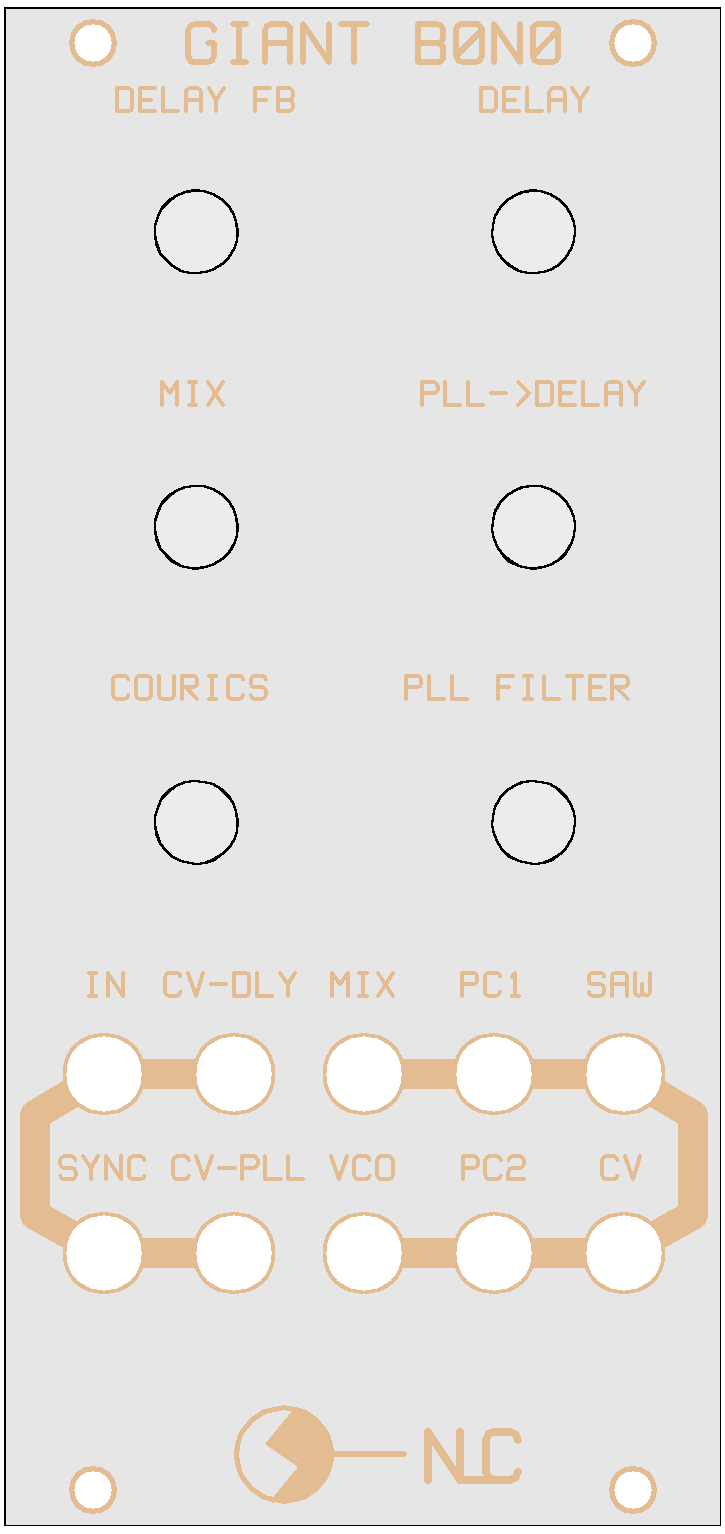

Basically I mated a vactrol PiLL with the DelayNoMore, so it has a PLL chip, a delay chip & 2 vactrols. Pretty much does whatever it wants most of the time.

Saturday, 19 December 2015

Chopper & Mixer panels back in stock

more white & gold!

1050 MixSeq

This module is based on the Arp 1050 mix sequencer. Although this version drops the VCO and push button functions. Using the switches, it is an 8 step sequencer, two 4 step sequencers, an 8 input mixer, 8 stage sequential switch, two 4 stage sequential switches and there is also a difference rectifier giving the +ve and -ve difference between stages 1-4 and 5-8.

The assembled PCB shown was a proto-type but the sockets should all be on the same side and the LEDs are actually thru-hole. I just used smd LEDs as they are easy to remove.
It is pretty much all SOIC and 0805 components, but a pretty easy build.
PCB - US$22, 16HP panel  US$30, assembled - US$220
Finished module pictures HERE

Thursday, 17 December 2015

Open Source Eurorack cases

Local case builder and cellF designer Nathan has posted up all the files for his eurorack case designs. Feel free to choose one, send it to a lasercutter service or, better, take the file to your local hackerspace and get a new case with $5 worth of wood.
See the thread on Muffs for info on where to get these made and any other tips

42HP 3U Skiff 70mm - http://www.thingiverse.com/thing:1205874
42HP 4U 123mm - http://www.thingiverse.com/thing:1205901
84HP 3U 93mm - http://www.thingiverse.com/thing:1205913
84HP 3U 123mm - http://www.thingiverse.com/thing:1205983
84HP 3U 63mm - http://www.thingiverse.com/thing:1206004
84HP 3U 10mm Acrylic - http://www.thingiverse.com/thing:1206029
84HP 4U 123mm - http://www.thingiverse.com/thing:1206047
84HP 4U 133mm 10mm Acrylic - http://www.thingiverse.com/thing:1206051
84HP 6U 80mm Skiff and Lid - http://www.thingiverse.com/thing:1206069
84HP 6U 93mm - http://www.thingiverse.com/thing:1206075
84HP 6U 123mm - http://www.thingiverse.com/thing:1206087
84HP 6U Skiff 63mm - http://www.thingiverse.com/thing:1206102
84HP 6U Studio - http://www.thingiverse.com/thing:1206118
84HP 7U 93mm - http://www.thingiverse.com/thing:1206125
84HP 7U 123mm 10mm Acrylic - http://www.thingiverse.com/thing:1206141
84HP 7U 123mm with Lid - http://www.thingiverse.com/thing:1206275
84HP 9U 123mm - http://www.thingiverse.com/thing:1206304
84HP 9U Studio - http://www.thingiverse.com/thing:1206307
84HP 11U 123mm - http://www.thingiverse.com/thing:1206311
104HP 3U Skiff 63mm - http://www.thingiverse.com/thing:1206319
104HP 8U 83mm - http://www.thingiverse.com/thing:1206325
104HP 12U Studio Case - http://www.thingiverse.com/thing:1206334
42HP Vectrex Synth Case - http://www.thingiverse.com/thing:1206348
84HP 7U Studio 10mm Acrylic - http://www.thingiverse.com/thing:1207296
84HP 21U Studio Tower - http://www.thingiverse.com/thing:1207319
104HP 13U Skiff 83mm - http://www.thingiverse.com/thing:1207335
168HP 6U Skiff 83mm - http://www.thingiverse.com/thing:1207342

4seq panels back in stock

now they are white:

Monday, 7 December 2015

Modular Addict

A new store for DIYers has opened in the USA - Modular Addict. They will stock a selection of NLC PCBs (and other designers too). They will have their own panel designs to suit the PCBs. Eventually they will also have components kits available.
Of course you can still purchase directly from me as well, it is nice to have options!
