BOOLs

This module is like a hybrid between the NLC quad logic module and the Sauce of Unce. There are 4 inputs driving chained logic gates (you can choose what logic you want - OR, NOR, AND, NAND, XOR or XNOR by the chip installed). There are 4 gate outputs giving the boolean logic result of the signals on inputs 1&2, 2&3, 3&4 and 4&1. A resistor ladder network gives the stepped output based on what these 4 outputs are doing. From this a S&H circuit with a slew processor gives a smooth output. PCBs available now - US$18. Panels will be available in mid-July for US$20


Friday 12 June 2015

4seq

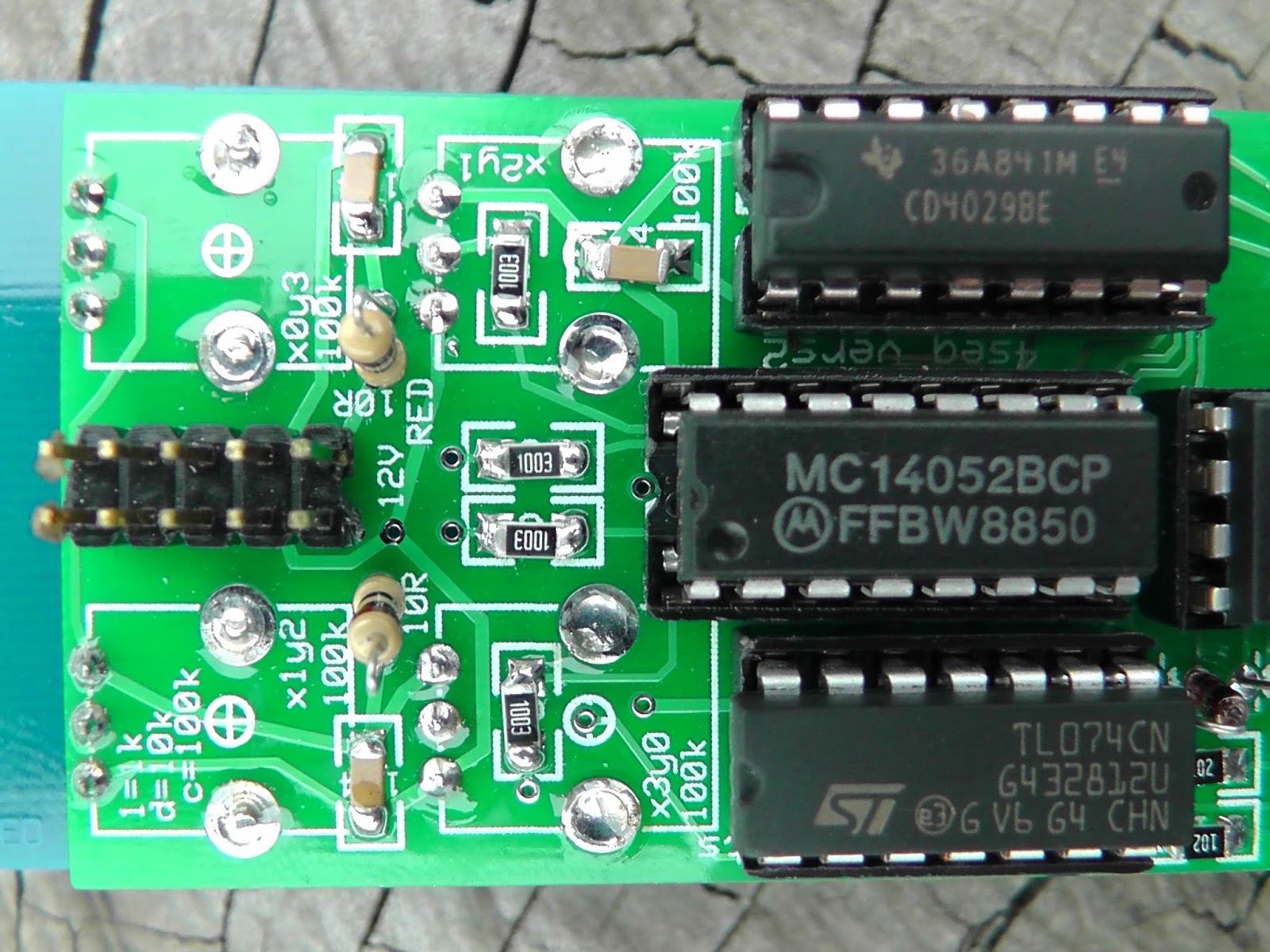

4seq - this sequencer has 4 stages with a forwards/backwards control allowing the development of quite complex sequences and patterns. It also gives CV outputs that are the reverse of each other, if outX is counting 1,2,3,4 then outY counts 4,3,2,1.
There are also gate outputs that are /2, /4, /8 & /16 divisions of the clock signal.

Available now
PCBs - US$18
panels - US$20
shipping - US$5 per order

Build guide and BOM pdf

 Thanks to Chancho for being such a great foot model






Tuesday 9 June 2015

new white/gold panels

I think all panels will be white/gold for a while, these are simply stunning. Gotta thank Mitch @ Hackvana for suggesting and helping in the development of these.
