The Big Room (Reverb)

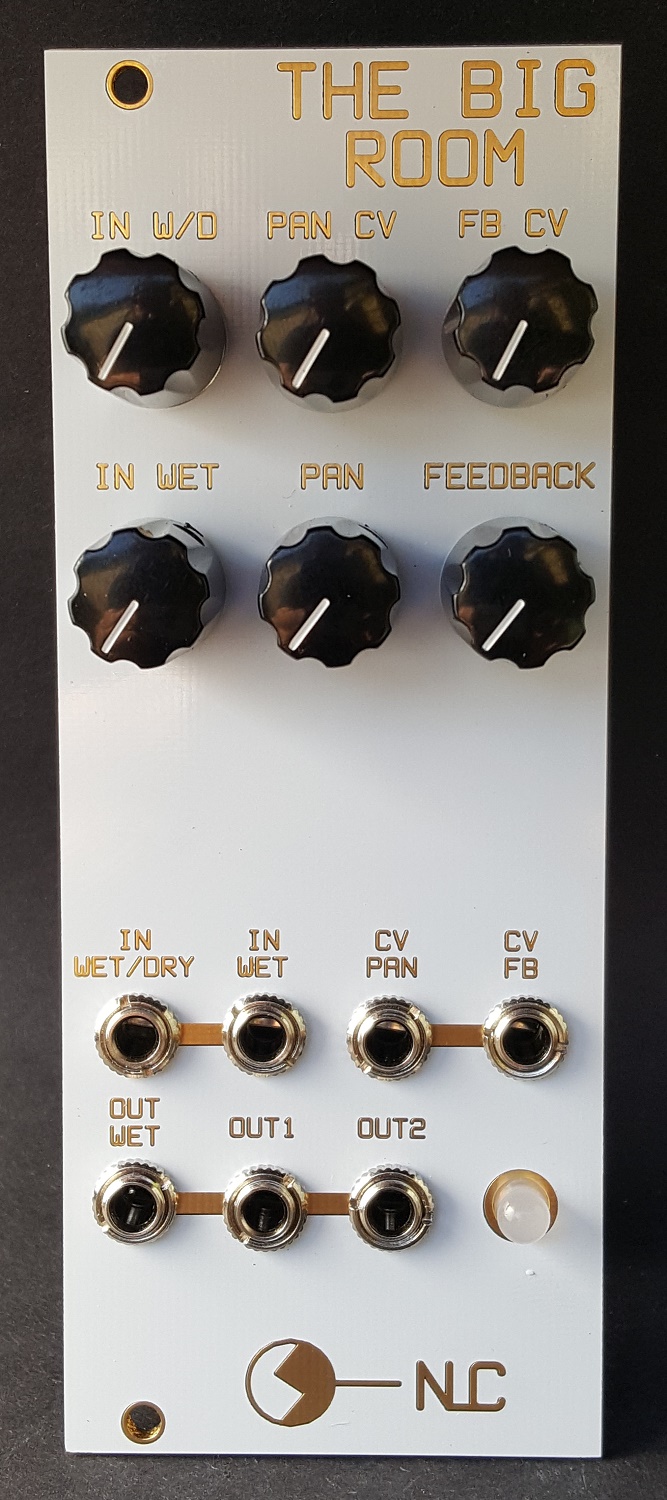

This module merges the Polyfusion reverb driver circuit with the NLC Segue for VC panning between wet and dry signals. It also has a VC feedback circuit....be careful with that one 😁

The driver circuit was used in the NLC CellF Voice panel, I always liked it and received good feedback from people who owned these panels, so stuck with the design. The downside is it rquires a particular reverb tank, which is easily available for USD19, so not really a big deal. Builders could try experimenting with the driver circuit to make it work with other tanks but imho it sounds thick and cavernous with the tank it is designed for.

The PCBs form a giant vactrol case for the LDRs used in the panning circuit.

Build Guide and other info on the NLC wiki

PCB set = USD24
Panel = USD22
assembled = USD200 (Reverb tank not included, it will be much cheaper to order your own directly from the supplier) If in EU, maybe cheapest from here.









Thursday 4 October 2018

Dual LPG

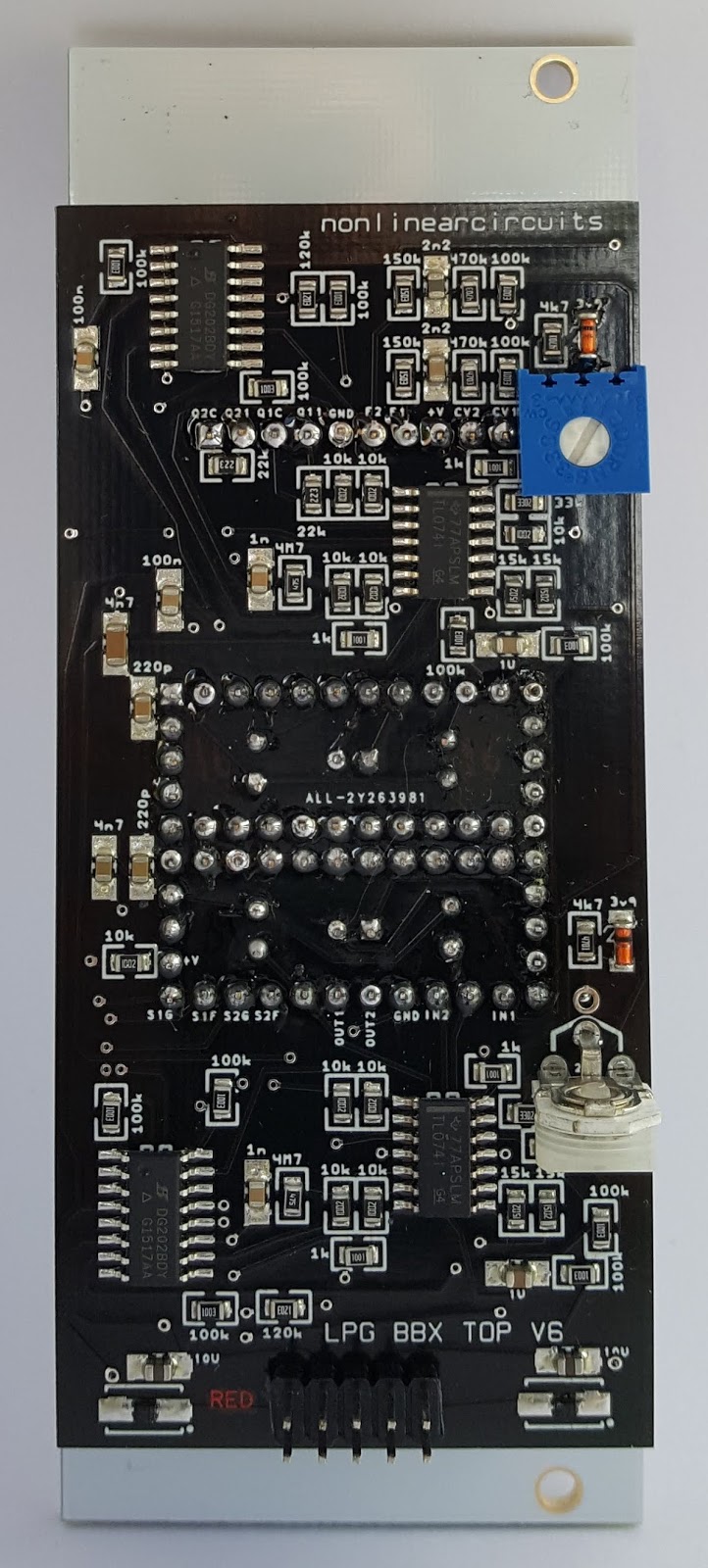

Dual Low Pass Gate - pretty standard except it uses the black box vactrol method seen in the Shat-noir Phaser and Noiro-ze VCF/VCA. DG analogue switches are used for changing between filter and gate modes.

PCB set = USD24
Panel = USD22
assembled = USD200




soundcloud demo by Steve
