FF chaos

FF Chaos (flip-flop) - This is another chaos module but designed to supply a variety of gates and triggers. It is self running but can be synced with the gate/trigger input. There is also a CV input which shifts the output between periodic and chaotic behaviour. There are two CV outputs, one trigger output and three gate outputs which supply different and varying gates that can be delivered in bursts......this thing is simply nuts.

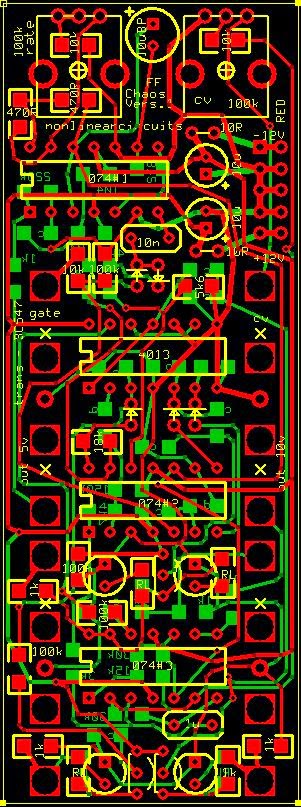

The most common build error with these is people soldering the passives on the bottom of the PCB onto the wrong pads. Please use the above picture to check the passives are installed correctly. Also some PCB versions need a couple of mods, check the Build Guide to see if your version need these.
