Mogue mixer & VCA

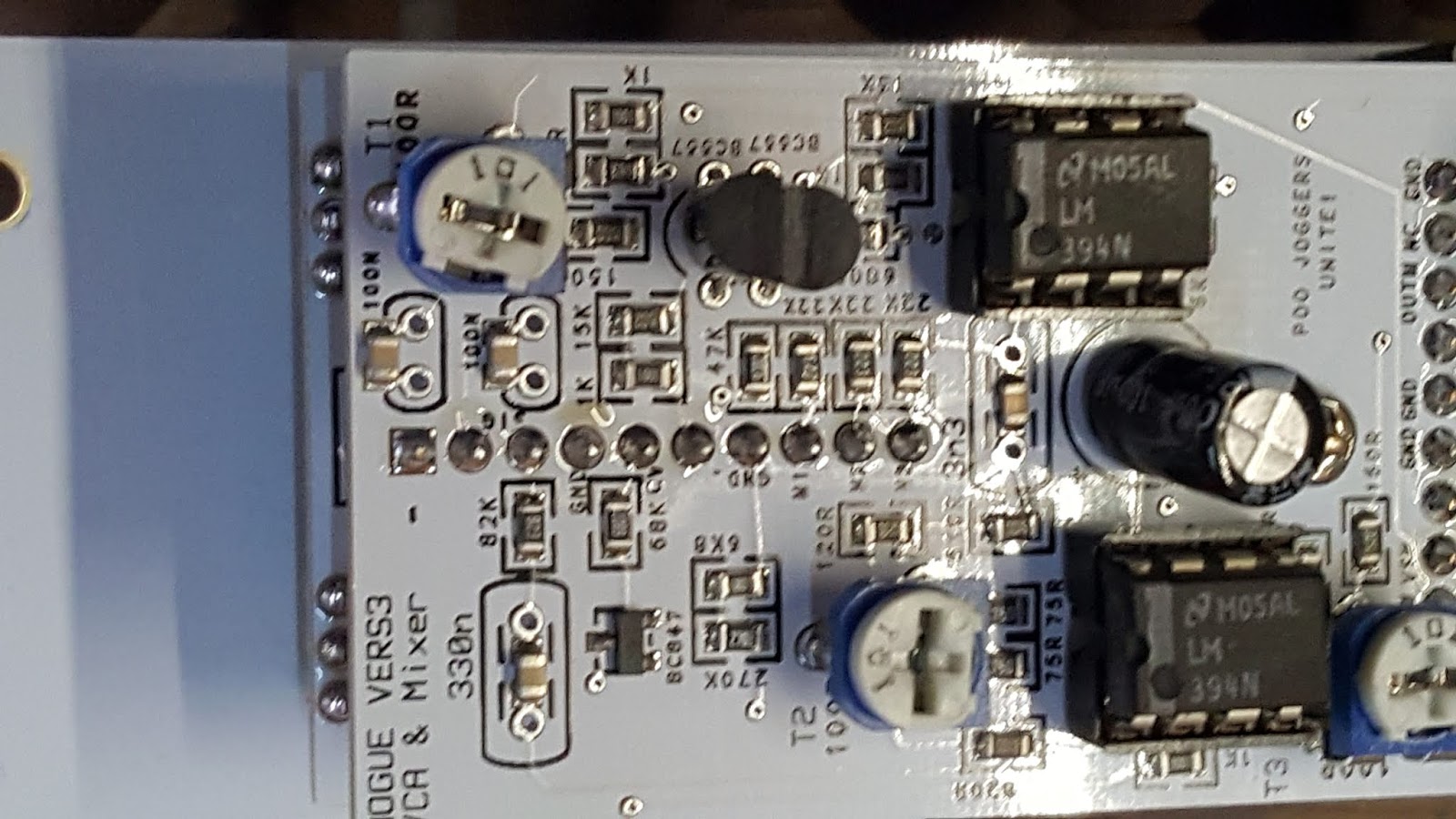

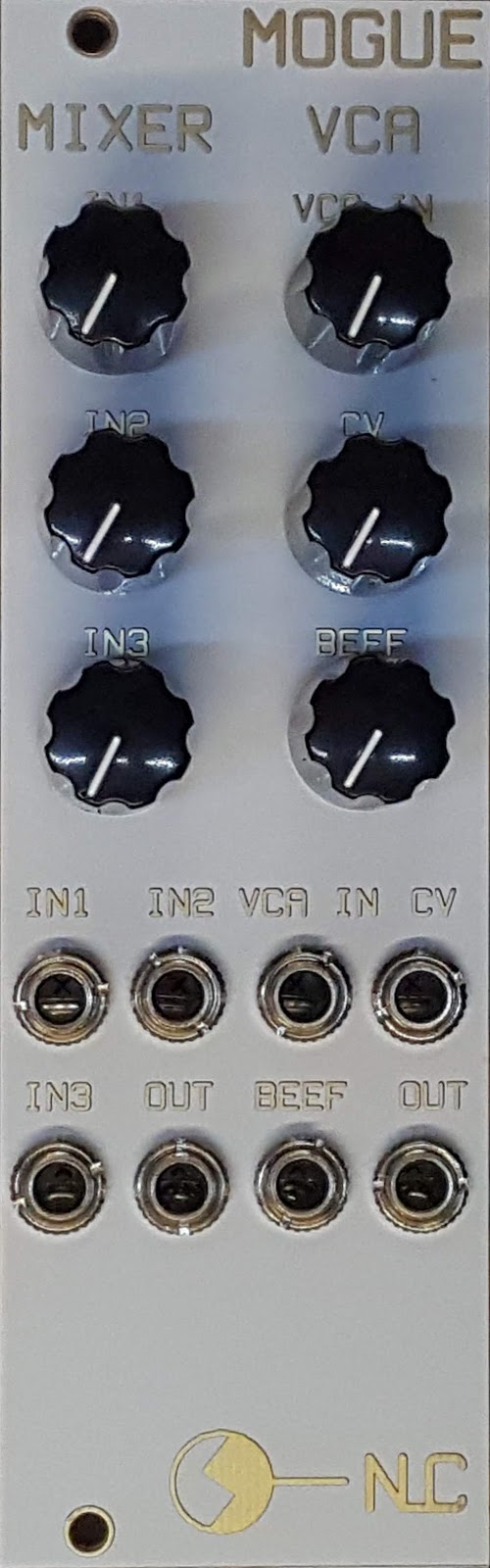

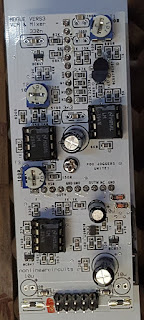

MOGUE is a VCA and Mixer inspired by early Moog designs, with some mods to get them into ‘Eurorack standards’ (!). Both circuits can be overdriven to get some wave-shaping action. The mixer can handle CV and audio but the VCA is audio only (tho feel free to place links instead of the capacitors to make it work for DC). Some users consider these 2 modules are an inherent part of the legendary Moog sound…maybe; I just wanted to use up all my LM394.
Build info HERE

PCB set  = USD23
Panel = USD20
assembled = USD190
