This module is based on ideas suggested by Lucas Abela.

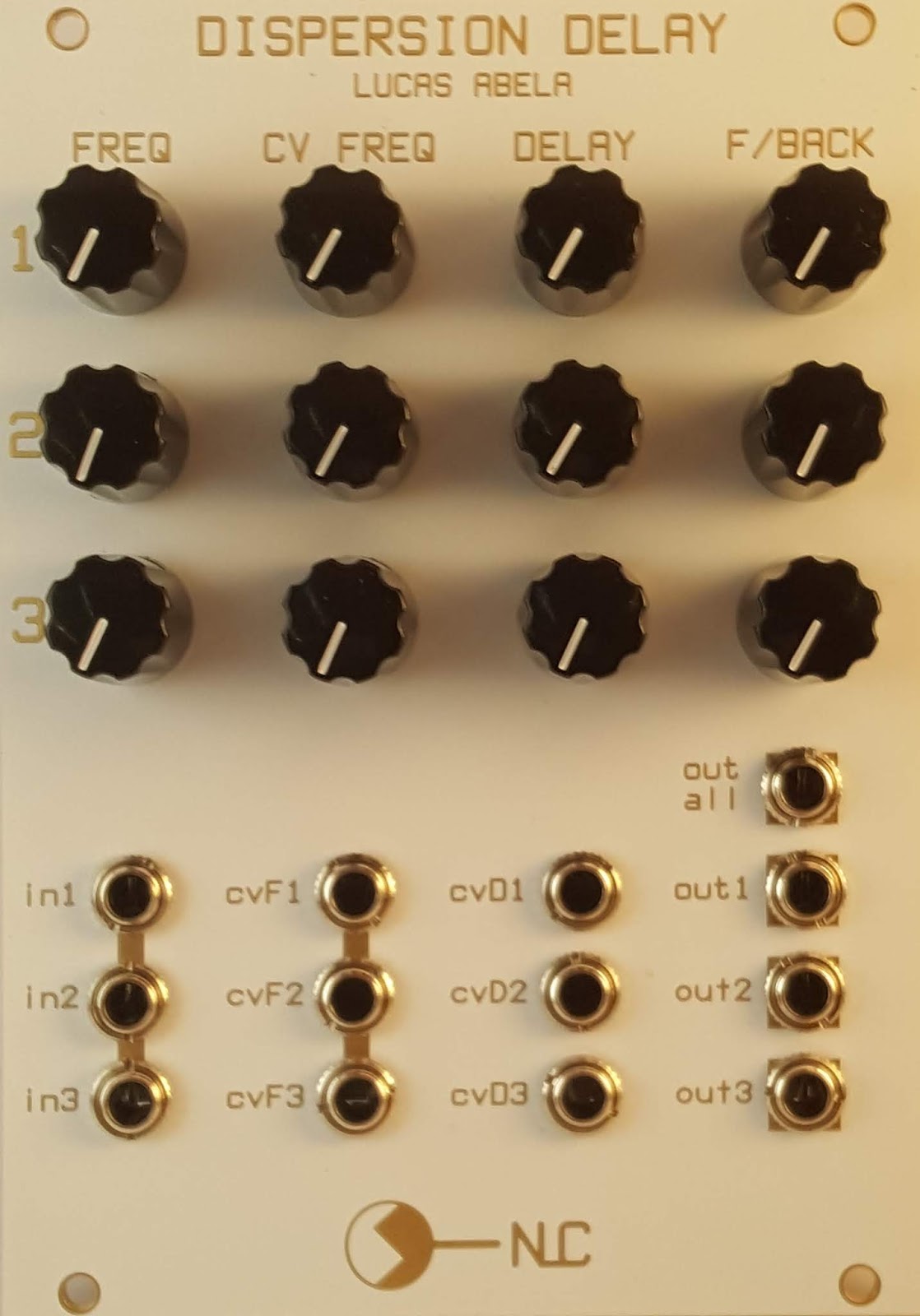

It is three vactrol based bandpass filters in parallel, each filter is fed into a voltage controlled delay stage. The outputs are available individually or there is an OUT ALL where all 3 signals are mixed.
Me being me designed the delays to go into stutter/zipper/breakdown territory to create the usual noise I love. If desired the delays can be built to remain in their normal operating regions.
PCB set = USD25
Panel = USD26
Assembled = USD260
Build info on the NLC wiki
Steve's soundcloud demo
