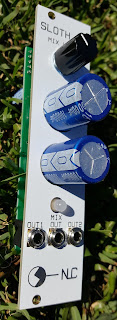

For those that have not seen the Sloth before - this module is a simple chaos circuit that puts out 3 slowly varying and never repeating CV signals. It is not random as the chaos occurs within a bounded region and generally moves in or between two strange attractors or wells.
It is really slow and can take from 8-20 hours to complete a chaotic orbit.
Generally the output signals range between +/-4V, tho mostly around +/-2V.
The middle output is simply a mix of the two main outs, passing through the pot to attenuate the signal if you wish (and it helps hold the PCB to the panel). It is a little hotter and more complex that the individual outs.
There are no inputs and no way to control it.
The large capacitors sticking through the panel never see more than +/-0.15V in normal use. Nevertheless you probably should not take the module out of the case and rest your tongue across their leads.
PCB = USD12
Panel = USD20
assembled = USD100
Build guide on wiki
