Tuesday, 23 May 2017

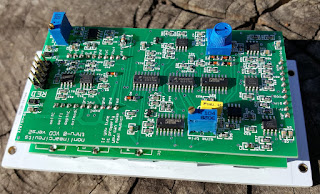

Plague of Demons - thru0 VCO

PCB set - USD26
panel - USD24
assembled = USD280

available now

Build guide and panel template

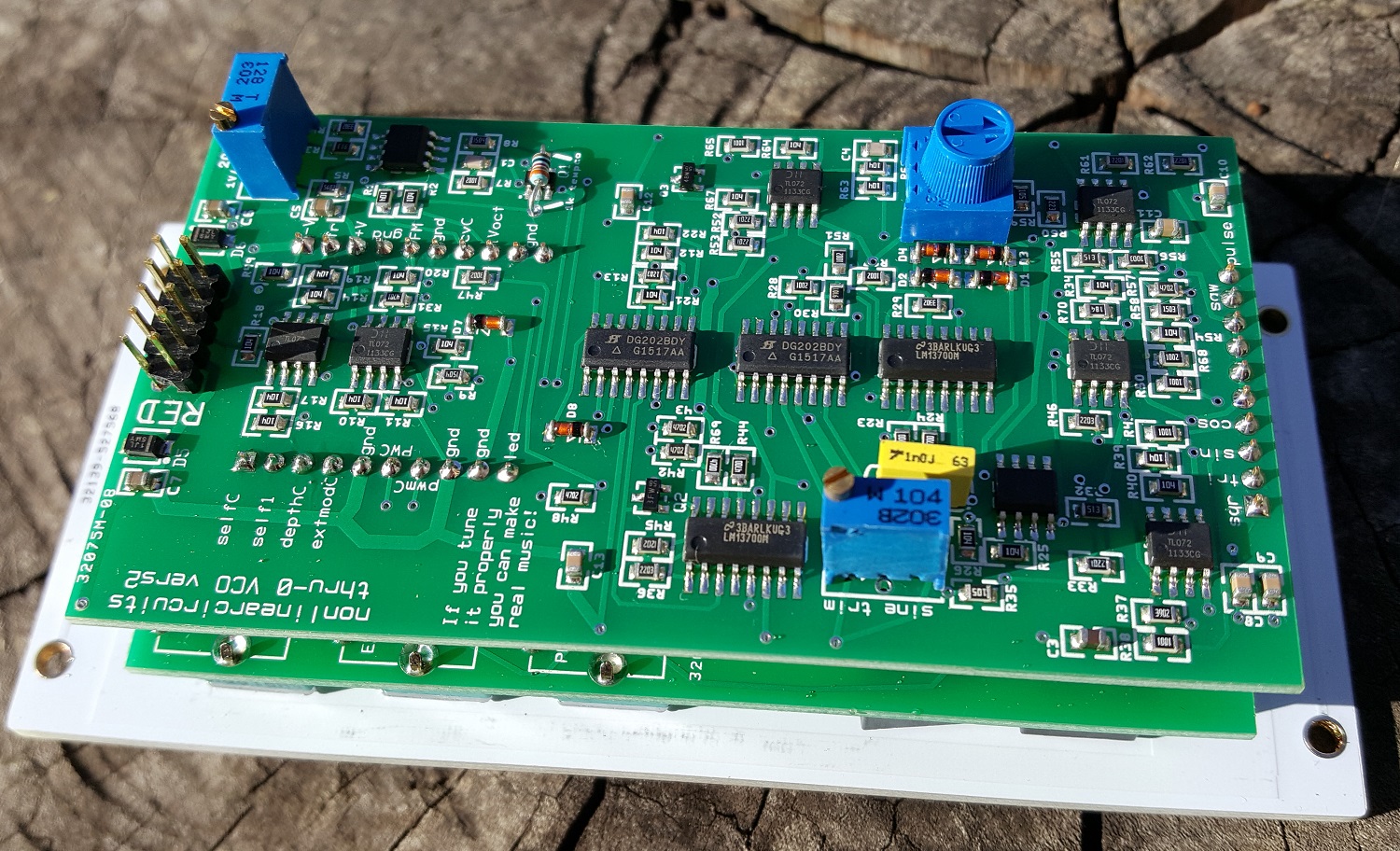

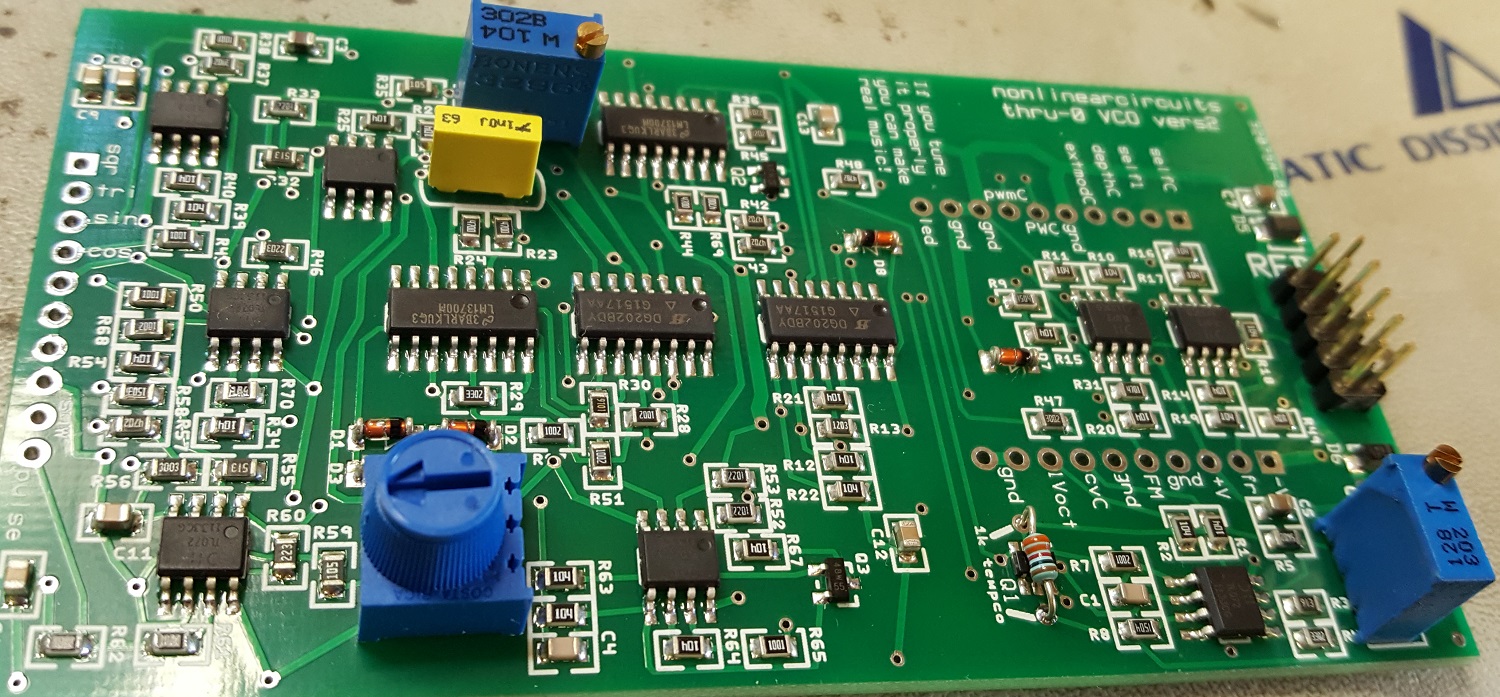

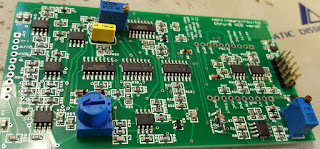

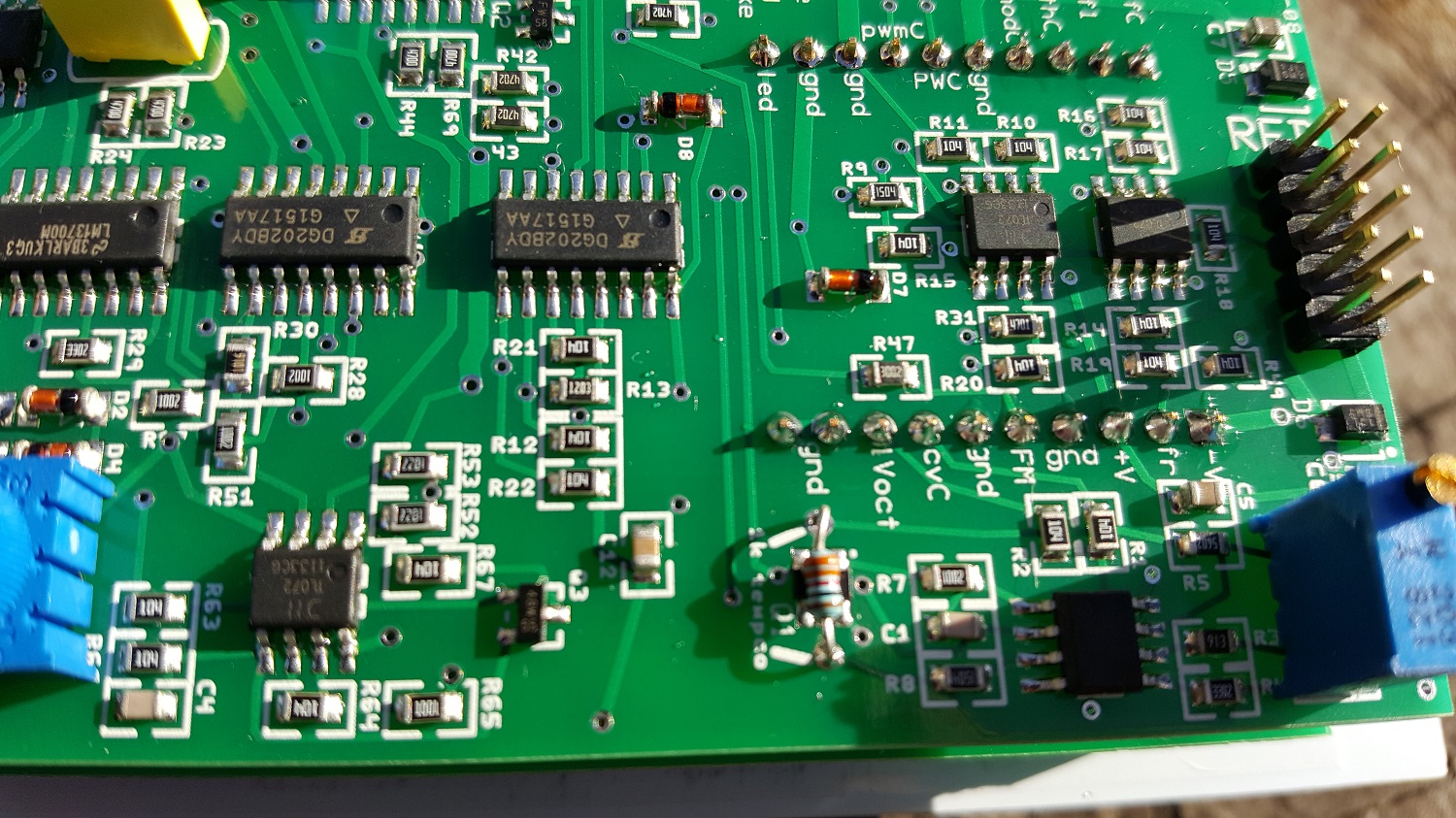

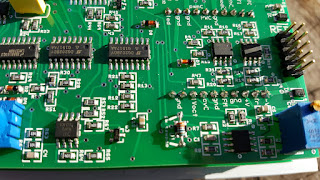

This VCO uses DG202 (or equivalents) analogue switches to achieve the thru 0 function, based on ideas presented in Electronotes EN#75.
Very nice demo of sounds by Steve:

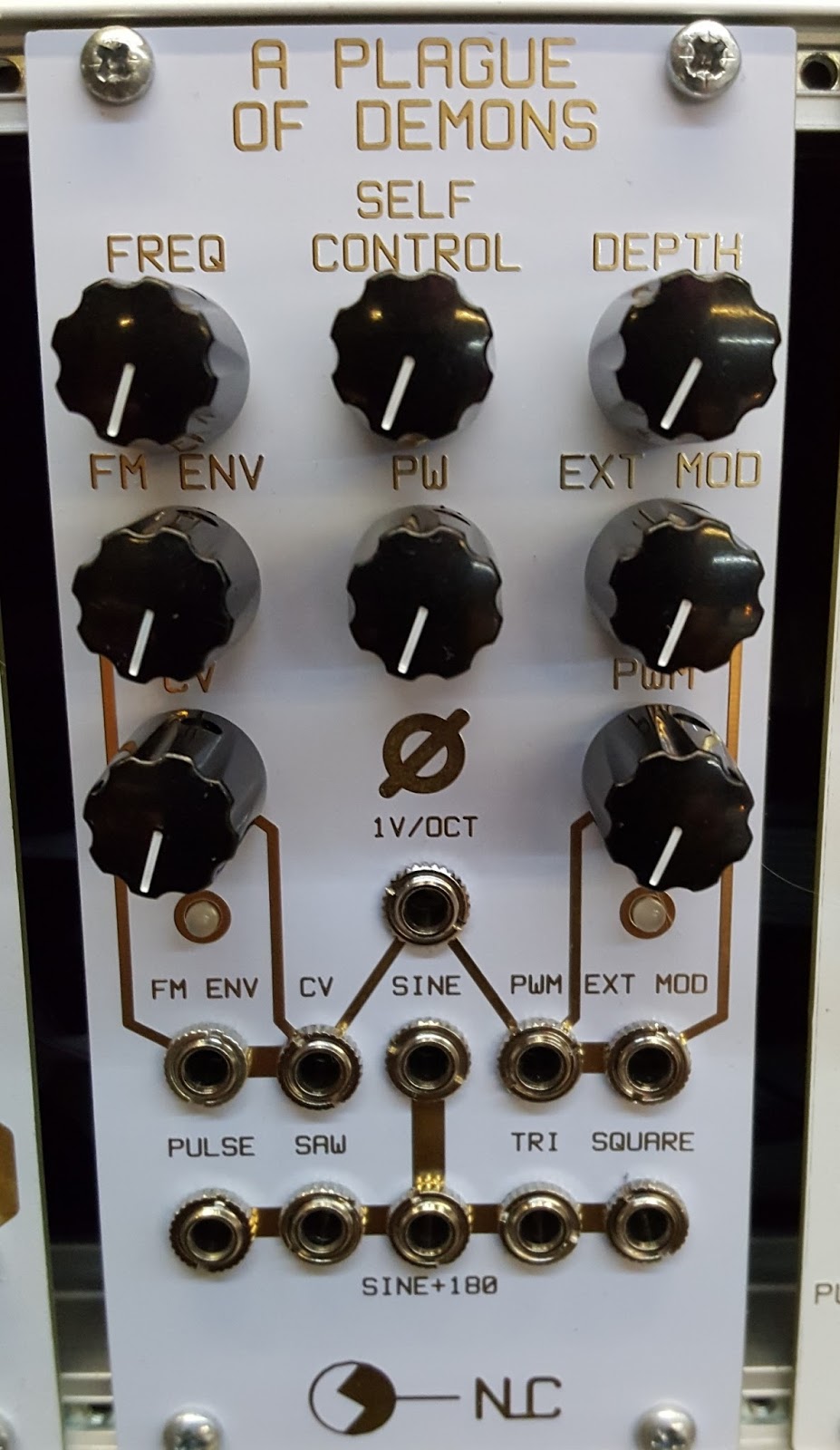

note 20 Jan 2018 - just got asked about this, so to be clear: the thru-0 mark in the centre of the panel is simply to indicate what type of VCO this is. I have no connection with Antumbra modules which use the same mark on all their panels (and were released a few months after this one).

Posted by

5 comments:

  1. philippe danneel7 July 2017 at 05:57

    Hello, does it track well over at least 4 octaves ?

    ReplyDelete
  2. nonlinearcircuits7 July 2017 at 10:45

    Yes, no problem

    ReplyDelete
  3. Unknown24 August 2017 at 09:27

    are you shipping v3 pcbs now?

    ReplyDelete
  4. nonlinearcircuits24 August 2017 at 17:41

    Not yet, will order them in when V2 stocks are low. If you are worried about doing the schmitt mod, don't be, it is quite simple.

    ReplyDelete
