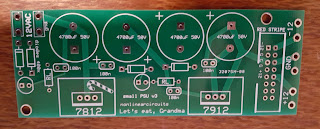

Anyway, its about a simple PSU as you can get. Runs on 7812 and 7912 to give +/-12V. If you bolt them to a nice big heatsink, you could even get 1A per rail (using 1.5A spec'd regulators).
This PSU is powered by a 12VAC wallwart, so no need to wire any mains voltages.
The design is a slimmed down version of a PSU we use in the WAMod workshops, the only differences are:
- only 1 eurorack connector instead of 7
- no 5V section
- holes for installing spade connectors
